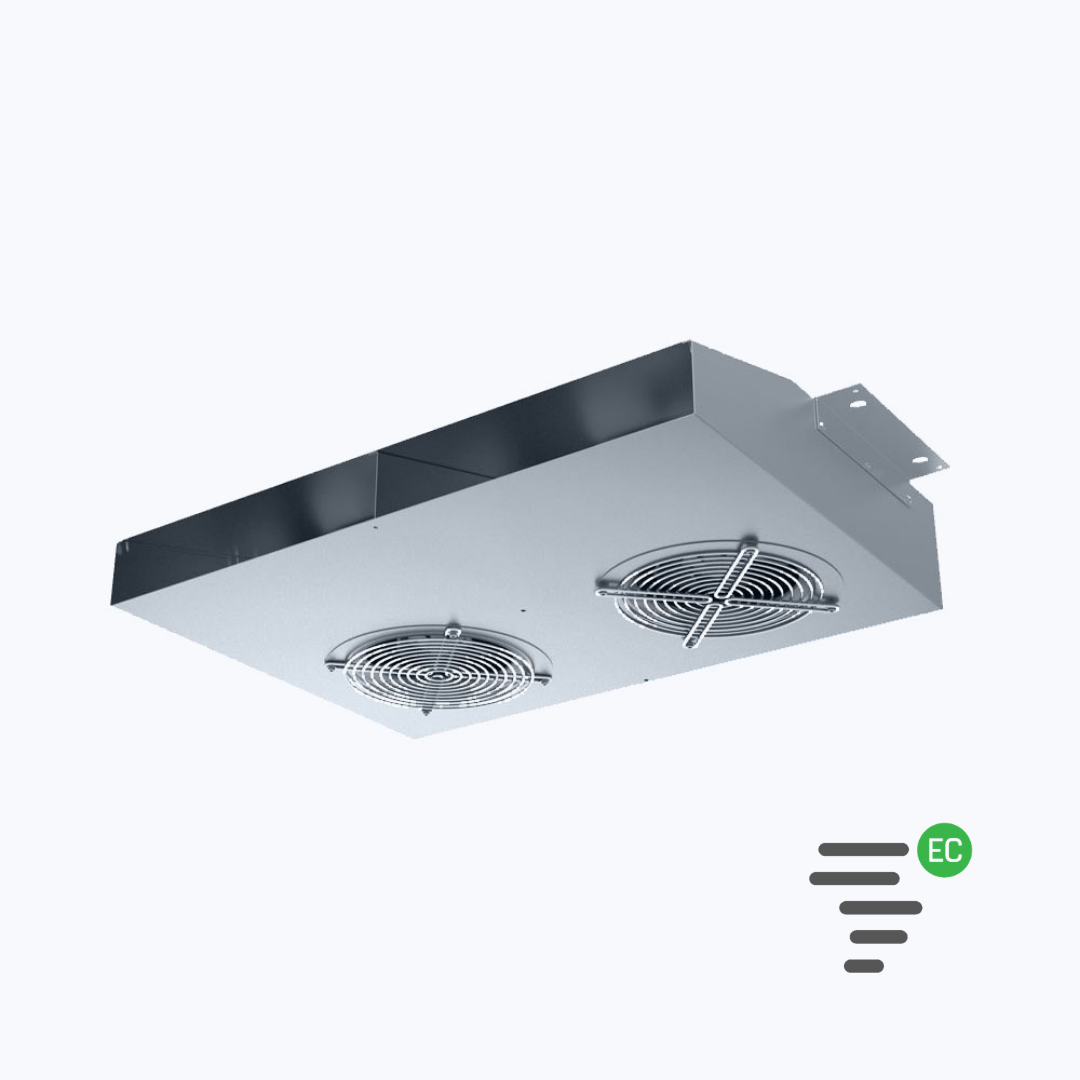

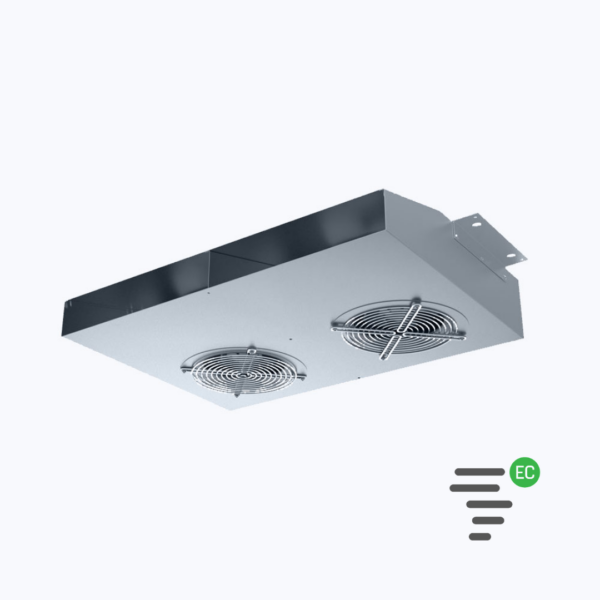

EC-PV 120 A Twin EC dual-impeller car park jet fan
The EC-PV 120 A Twin is a compact induction jet fan designed for everyday (ambient-duty) car park ventilation. It features two impellers driven by energy-efficient EC motors. Combining a compact design with high thrust, the EC-PV 120 A Twin is suitable for applications requiring effective air movement where installation space is limited.
The EC-PV 120 A Twin is designed for everyday ventilation and is not intended for smoke and heat exhaust in the event of a fire. Applications requiring smoke and heat exhaust need specific AC car park jet fans certified to EN 12101-3:2015. See our AC car park jet fans for smoke and heat exhaust.
Looking for a single-impeller version instead? Take a look at our EC-PV EC car park jet fans for everyday ventilation.
Ventispecial has been involved in the development of induction jet fans since 2003. We built the first prototype by hand, laying the foundations for the induction fans used in applications today.
Dual impellers for everyday car park ventilation
The EC-PV 120 A Twin features two impellers housed in one compact casing. EC technology provides efficient motor operation and allows straightforward fan speed control.
Thanks to its low installation height, the fan can be installed directly above parking bays or traffic lanes. This helps keep the space required for the ventilation installation to a minimum.
Standard design and available options
The EC-PV 120 A Twin is supplied as standard with a galvanised steel casing. Depending on the application, various configurations and options are available:
- Galvanised steel construction
- Optional RAL colour coating
- Backward-curved impellers
- Straightforward speed control through EC technology
- Energy-efficient EC motors
- Low installation height
Benefits of the EC-PV 120 A Twin
The compact Twin design offers several advantages for the installation and everyday operation of car park ventilation systems.
High thrust in a compact design
The two impellers deliver high thrust from a relatively compact fan unit. This makes the EC-PV 120 A Twin an attractive option where installation space is limited.
Low installation height
The compact design allows installation above parking bays or traffic lanes, helping to preserve available headroom.
Energy-efficient EC technology
The EC motors are designed for efficient operation and help manage energy consumption during everyday ventilation.
Straightforward control
Integrated EC technology allows the fan to be connected and controlled with ease.
Reduced cabling requirements
The integrated technology can reduce the amount of cabling and cable trunking required. Depending on the installation, separate EMC cables and cable glands required by certain conventional drive arrangements may also be unnecessary.
Potentially faster installation
The compact fan design and reduced cabling requirements can help shorten installation time.
Accessible for maintenance
The motors and impellers are readily accessible for inspection and maintenance.
Lower transport and storage requirements
The compact dimensions simplify packaging, transport and temporary storage, potentially reducing associated costs.
Technical specifications
The technical specifications, dimensions and available control settings for the EC-PV 120 A Twin can be found in the product datasheet under the Downloads tab.
The datasheet includes technical data, dimensions and an overview of the available settings.
EC for everyday ventilation, AC for smoke and heat exhaust
The EC-PV 120 A Twin is designed for everyday car park ventilation. It is not certified for smoke and heat exhaust applications.
If your project requires smoke exhaust or smoke and heat exhaust, take a look at our AC car park jet fans, which are certified for this purpose in accordance with EN 12101-3:2015.
Not sure which version is right for your car park? Get in touch. We will be happy to help you assess the application, required thrust and appropriate fan configuration.
