Description

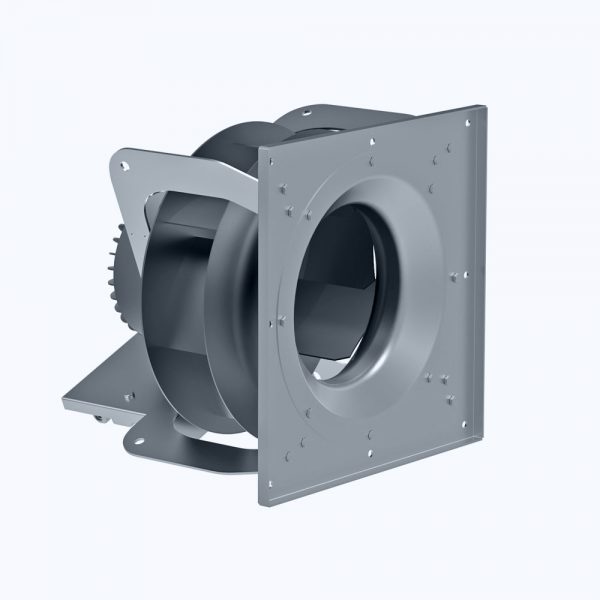

Plug fan with backward curved blades and EC motor
Looking for an efficient and compact fan for industrial applications? This plug fan is equipped with backward curved blades and an energy-efficient EC motor. It is supplied as standard with frequency control, with other connection options available. The fan comes in both light-duty and heavy-duty versions, depending on your application.
With diameters ranging from 225 to 1,120 mm and an air capacity of up to 60,000 m³/h, this plug fan can be used in a wide variety of systems, from air handling units to process installations. The design without a spiral housing allows free discharge direction and flexible installation. Ideal for applications where compact design and quiet operation are important.
Technical specifications:
- Sizes: 225–1,120 mm
- Capacity: up to 60,000 m³/h
- Pressure: up to 2,000 Pa
- Motor: EC motor
- Control: Standard with frequency control, options: 0–10 Volt, Direct On Line, Potentiometer (0–10V dimmer), PWM Signal, Modbus, Temperature-based, Humidity-based
- Versions: Light-duty or heavy-duty, depending on application
Want to know if this plug fan is the right choice for your project? Contact us for advice or a tailored quotation.
