Description

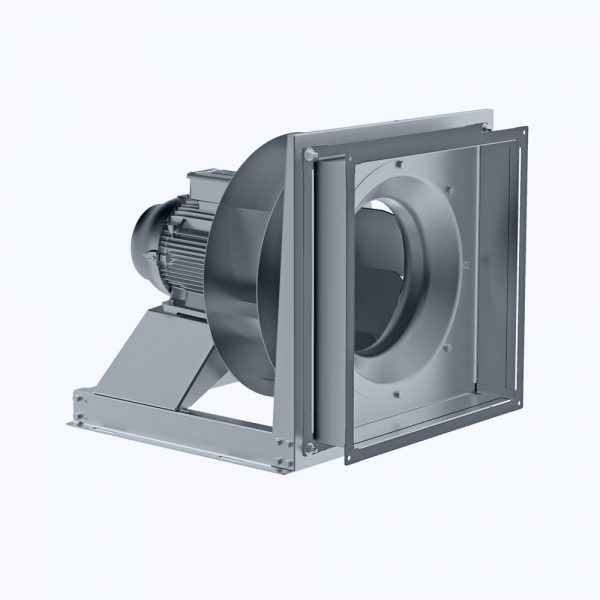

Plug fan with backward curved blades and standard motor
This robust plug fan is equipped with backward curved blades and a reliable standard motor (IP55). Thanks to the frequency control, the fan speed can be adjusted steplessly, making it suitable for variable air volumes in industrial applications. Available in both light-duty and heavy-duty versions, depending on the load and operating environment.
The fan is available in diameters from 225 to 1,400 mm and reaches an air capacity of up to 80,000 m³/h. Its design without a spiral housing allows for free discharge direction and easy installation. Ideal for applications such as air handling units, process air technology, or ventilation of larger spaces.
Technical specifications:
- Sizes: 225–1,400 mm
- Capacity: up to 80,000 m³/h
- Pressure: up to 2,000 Pa
- Motor: Standard motor (IP55)
- Control: Frequency control available
- Versions: Light-duty or heavy-duty, depending on application
Curious if this plug fan fits your installation? Get in touch with us – we’ll be happy to advise you.
