Description

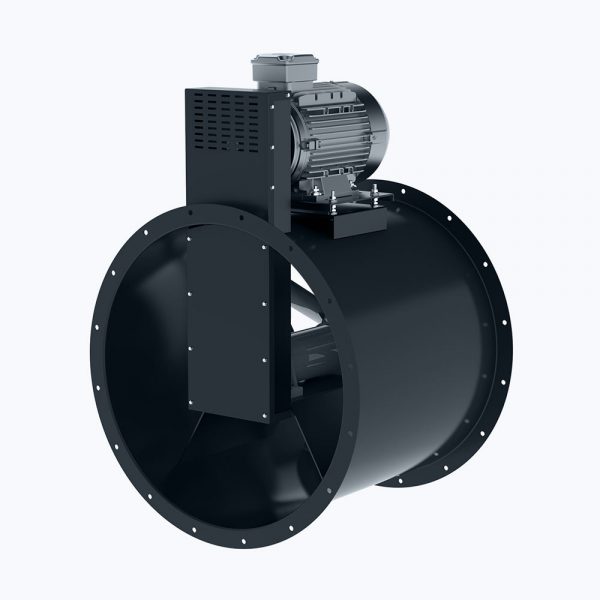

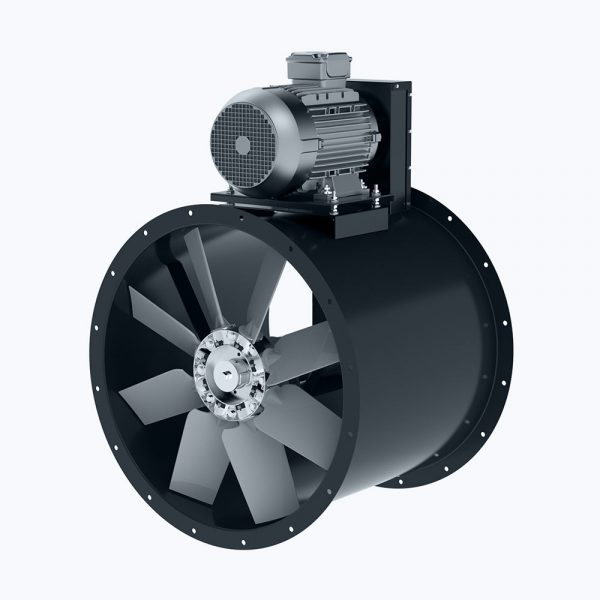

Belt-driven axial duct fan with standard motor
This robust axial duct fan is belt-driven, making it ideal for extracting or transporting smoke, dusty air, or humid air streams. With the motor positioned outside the airflow, it remains protected even in demanding industrial environments.
Key specifications
- Dimensions: 450 to 1,000 mm
- Airflow: up to 70,000 m³/h
- Pressure: up to 600 Pa
- Motor: Standard IP55 motor (outside the airflow)
- Drive: Belt-driven
- Control: Frequency control
- Applications: Smoke, dusty and humid air
Resistant to contamination and moisture
Since the motor is placed outside the airflow, it is not exposed to heat, grease, moisture, or dust. Perfect for industrial applications such as welding smoke extraction, process ventilation, dusty spaces, or kitchen ventilation systems.
High airflow, flexible control
With a capacity of up to 70,000 m³/h and frequency control, this fan is suitable for a wide range of air-handling installations where reliability and flexibility are essential.
Durable solution with multiple options
The fan can be equipped with a variety of accessories, including mounting flanges, protective grilles, and control units. A reliable, low-maintenance solution for challenging environments.
