Description

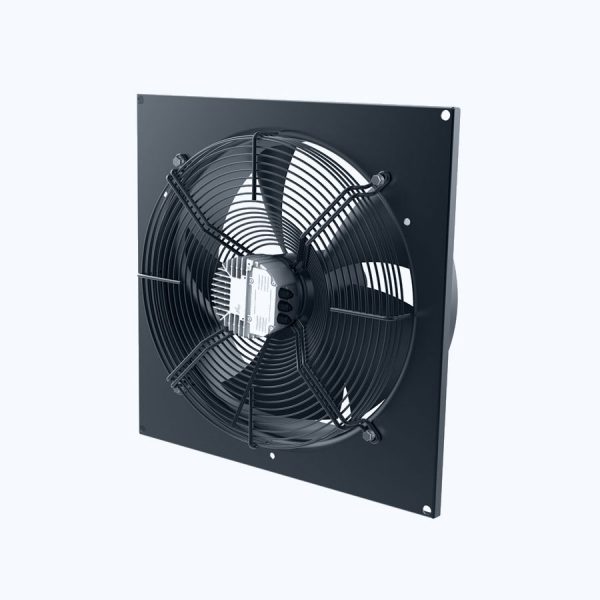

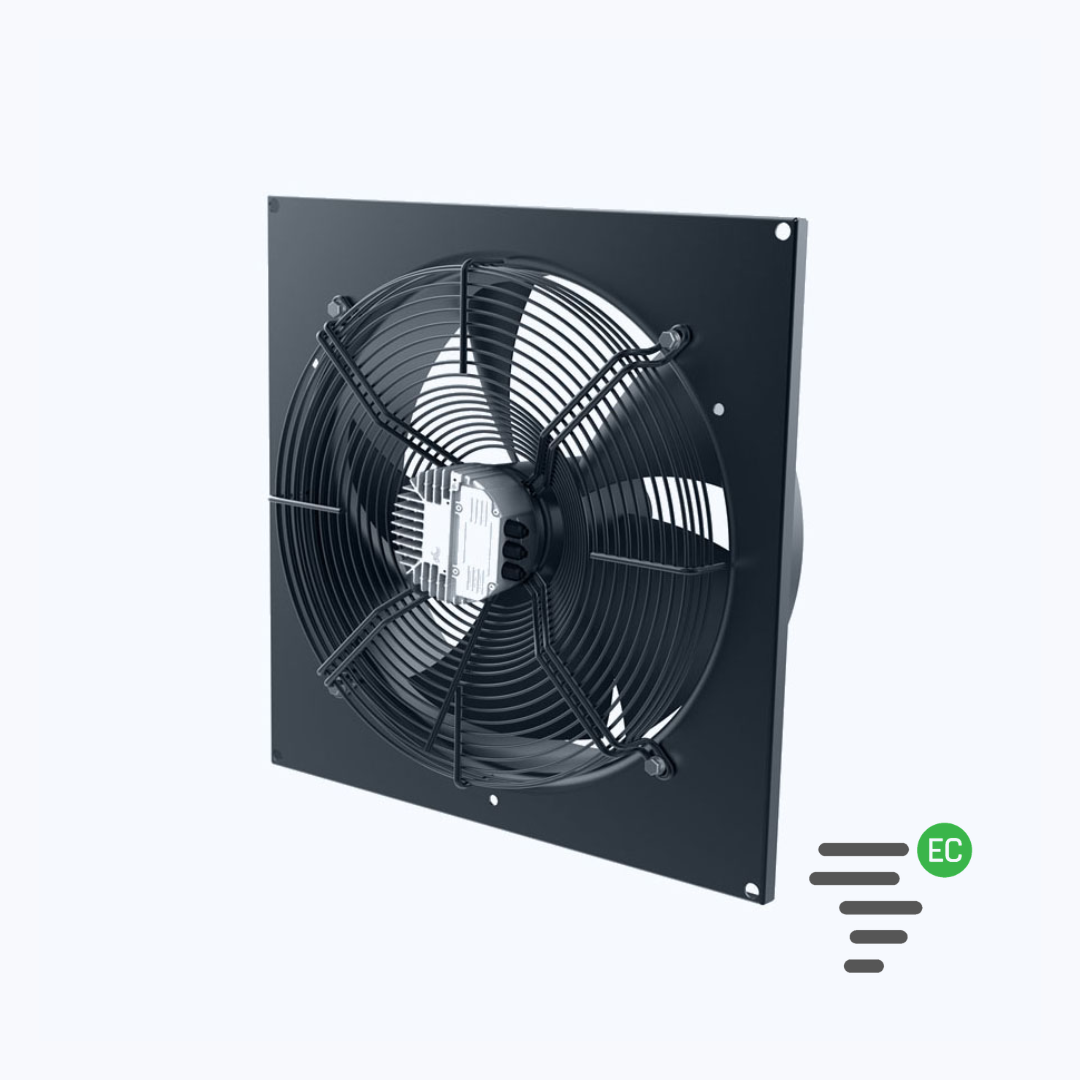

Axial wall fan with EC motor
Looking for an energy-efficient wall fan with quiet operation and precise control? This axial wall fan with EC motor combines high efficiency with smart speed regulation. Perfect for applications where low energy use, sound reduction and flexibility are key.
Key specifications
- Sizes: 200 to 630 mm
- Airflow: up to 12,000 m³/h
- Pressure rise: up to 200 Pa
- Motor: EC motor (IP54)
- Control: 0–10 Volt, Direct On Line, Potentiometer (dimmer 0–10V), PWM signal, Modbus, temperature- or humidity-based
- Accessories: Wide range available
Energy-efficient and quiet
Thanks to the Electronically Commutated (EC) motor, this fan is extremely efficient. It consumes less energy than conventional AC motors and produces less noise – ideal where comfort, noise levels and sustainability matter.
Stepless 0–10V speed control
The fan is easily controlled via a 0–10V signal, allowing you to adjust the airflow exactly as needed. It can be integrated into building management systems or respond to changing room conditions.
Compact, reliable and versatile
With its IP54 motor housing, this wall fan is suitable for dusty or slightly humid environments. Its compact design ensures easy installation. Various accessories are available to complete your ventilation setup.
Need advice on EC ventilation?
Our specialists are here to help you select the right EC wall fan. Get in touch for expert advice or a tailored quotation.
