Description

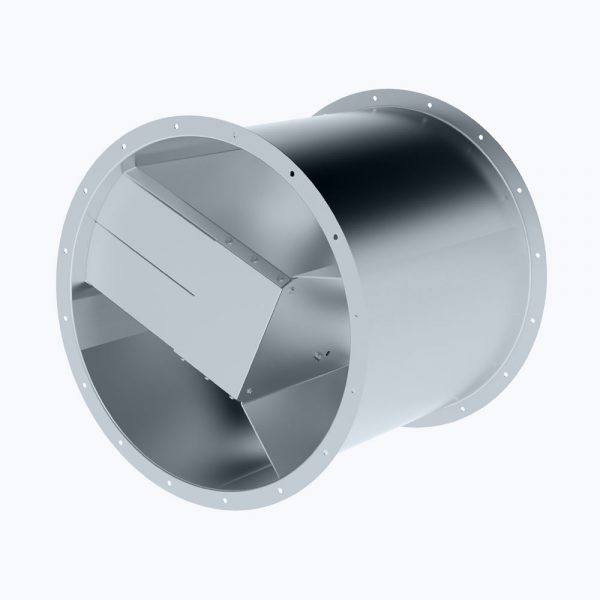

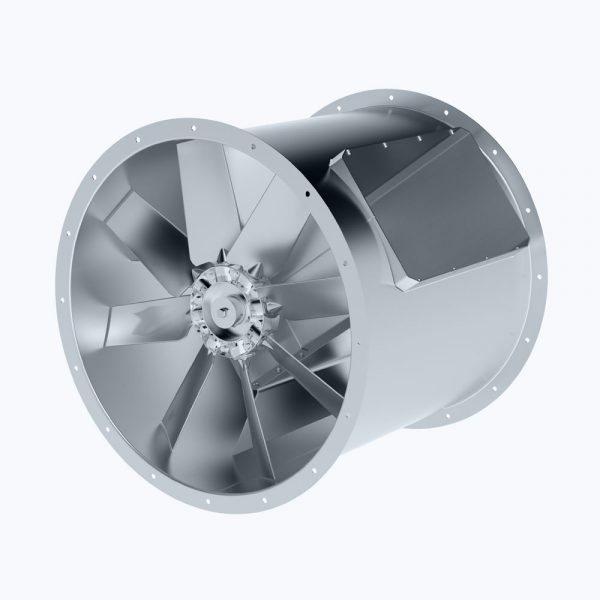

Axial duct fan with motor outside airflow
This axial duct fan is specially designed for applications with high air temperatures or contaminated air streams. The motor is positioned outside the airflow, protecting it from hot, humid, or dirty air. Robust, reliable, and suitable for continuous operation up to 200 °C.
Key specifications
- Sizes: 500 to 1,000 mm
- Airflow: up to 48,000 m³/h
- Pressure rise: up to 750 Pa
- Motor: Standard motor IP55 (outside airflow)
- Control: Frequency control possible
- Temperature resistant: Standard for 200 °C continuous operation
- Options: Coated, galvanized, or stainless steel version available
Ideal for hot or contaminated air
Because the motor is located outside the airflow, this fan is perfect for flue gases, hot process air, or extraction of contaminated air. Typical applications include bakeries, kitchens, ovens, industrial processes, and drying installations.
Reliable under heavy load
With an airflow of up to 48,000 m³/h and a pressure rise up to 750 Pa, the fan delivers solid performance even under continuous operation. The IP55 motor is dust- and splash-proof, making it suitable for industrial environments.
Controllable and flexible
Thanks to frequency control, the airflow can be easily adjusted to match your installation’s requirements. The fan is available with various accessories for mounting, safety, and control, ensuring full optimization of your system.
Accessories for complete integration
The fan can be fully optimized with a wide range of accessories, including mounting flanges, protective grilles, flexible connections, vibration dampers, dampers, and control units. These ensure safe, efficient, and quiet operation while allowing full adaptation to your specific installation.
