Description

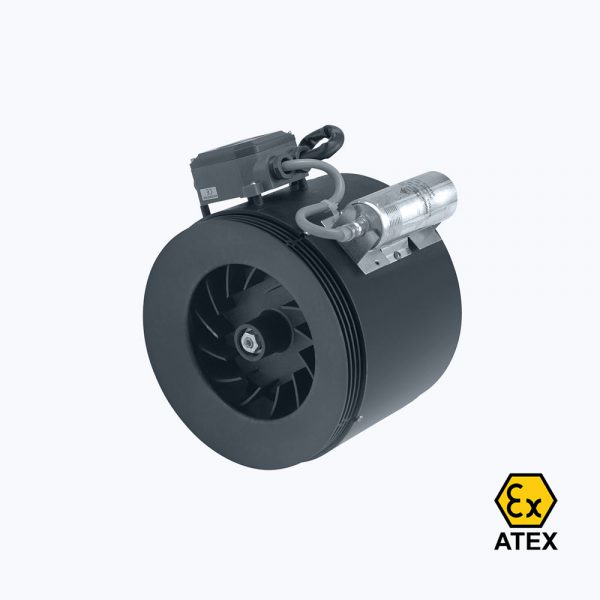

ATEX duct fan Type 18/22/25 – safe air movement in explosive atmospheres
This ATEX duct fan is specifically designed for safe air movement in zones where explosive atmospheres may occur. Equipped with an EEx-e IIB T3 ATEX motor, this circular duct fan complies with the requirements for use in gas zones with increased risk.
The compact construction makes it easy to integrate into circular ductwork. Supplied as standard with an IP54 terminal box mounted on the housing, installation is simple and efficient. Speed control is not applicable for this ATEX type due to safety requirements.
Technical specifications:
- Sizes: Ø180 to Ø250 mm
- Airflow: up to 900 m³/h
- Pressure: up to 350 Pa
- Motor: ATEX EEx-e IIB T3
- Control: not applicable (fixed speed)
- Extra: IP54 terminal box mounted on housing
Applications:
- Hazardous zones (gas zone, group IIB)
- Ventilation in technical installations, laboratories and storage areas with flammable gases
- Compact applications in circular ductwork
Benefits:
- Complies with ATEX directives for safe operation in hazardous areas
- Compact and robust design
- Easy integration into circular ducts
- Supplied with IP54 terminal box as standard
- Reliable operation without speed control
Looking for a compact and safe ATEX duct fan for explosive environments? Contact us for technical advice or a tailored quotation.
