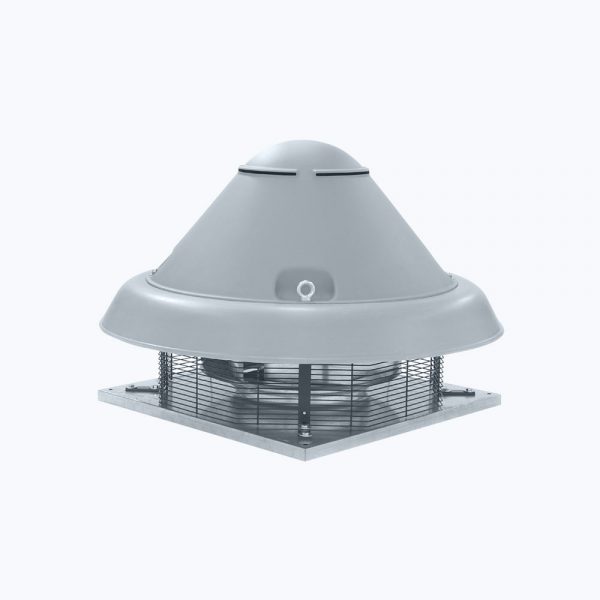

VN-Roof CH

VN-Roof CH

Centrifugal roof fan horizontal outlet

Sizes 250 up to 800 mm
Capacity up to 20.000 m³/h
Pressure up to 750 Pa
Motor Norm motor IP55
Control Frequency converter
Extra ATEX and fans for high temperatures possible. All kinds of accessories available



Request a quote
Would you like some advice first or are you looking for a custom solution? Get in touch with us. We’ll always find the right solution for you!

Call us at +31 (0)416 391 999 or email info@ventinet.nl

Description

Centrifugal roof fan with IEC motor – horizontal discharge

This centrifugal roof fan with horizontal discharge is ideal for applications requiring higher pressure than axial fans. Equipped with a reliable IP55 IEC motor and controllable via variable frequency drive, the fan provides powerful and efficient airflow.

Available in sizes from 250 to 800 mm, with an airflow up to 20,000 m³/h and a maximum pressure of 750 Pa, this fan offers a flexible solution for a variety of industrial ventilation needs. An ATEX version is also available, as well as a high-temperature variant.

Various accessories, including mounting frames, rain caps, and vibration dampers, are available to easily adapt the fan to your installation.

Technical specifications:

  • Sizes: 250 to 800 mm
  • Airflow: up to 20,000 m³/h
  • Pressure: up to 750 Pa
  • Motor: IEC motor (IP55)
  • Control: Variable frequency drive
  • Extra: ATEX version possible, high-temperature variant available. Various accessories available

Want to know which centrifugal roof fan best fits your project? Contact us for advice and a quick quote.

Downloads

Download productsheet VN-Roof CH
