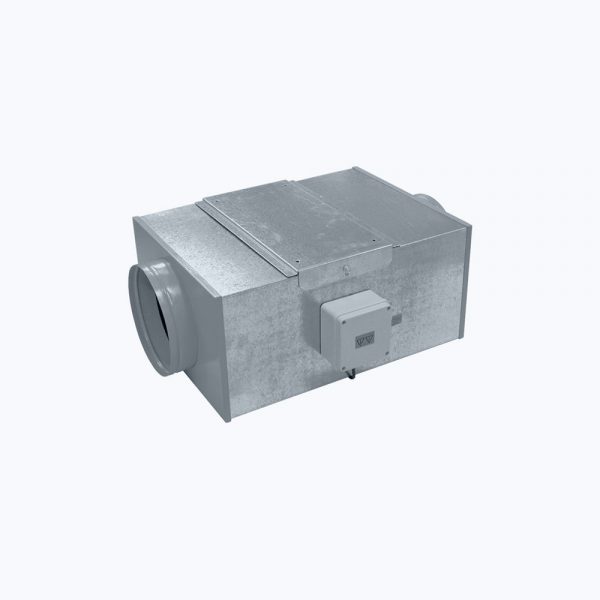

Sound-attenuated duct fan – Mini-box version for quiet airflow
The Mini-box duct fan is a compact and sound-attenuated centrifugal fan, ideal for applications requiring low noise levels and efficient air movement. Its built-in sound insulation makes it perfect for use in offices, schools, healthcare facilities, and other noise-sensitive environments.
This round duct fan features an external rotor motor (IP44) and operates with a transformer control for easy speed adjustment. The robust housing includes a mounted IP55 terminal box, simplifying installation and providing protection against dust and splashing water.
Technical specifications:
- Dimensions: Ø100 to Ø315 mm
- Capacity: up to 1,600 m³/h
- Pressure: up to 500 Pa
- Motor: External rotor, IP44
- Control: Transformer control
- Extra: Sound-attenuated housing, mounted IP55 terminal box
Applications:
- Offices, schools, hospitals, hospitality
- Ventilation systems requiring noise reduction
- Installation in round ductwork
- Air supply and exhaust in technical installations
Advantages:
- Low-noise operation thanks to sound-attenuated housing
- Compact design, easy to integrate into small spaces
- Easily adjustable via transformer
- Robust construction with IP55 terminal box for safe connection
- Reliable performance for daily ventilation applications
Looking for a compact and quiet duct fan? Contact us for advice or a quote for the Mini-box fan.
