Description

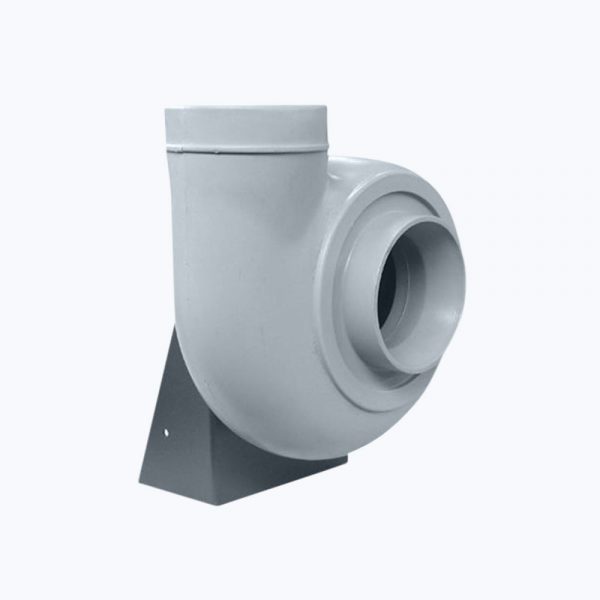

Plastic centrifugal fan with forward-curved blades
This plastic centrifugal fan with forward-curved blades is designed for applications where both high pressure build-up and corrosion resistance are required. Equipped with an IP55 standard motor and a chemically resistant plastic housing, this model is ideally suited for laboratories, process industries, or water treatment plants.
The fan is available with frequency control and optionally in an ATEX version for use in explosive atmospheres.
Key specifications
- Dimensions: 130 to 800 mm
- Capacity: up to 25,000 m³/h
- Pressure: up to 5,000 Pa
- Motor: Standard motor IP55
- Control: Frequency control
- Extra: ATEX version available
- Accessories: protective grilles, dampers, flexible connections, vibration dampers, condensate drain, silencers, safety switches, acoustic enclosures, frequency inverters
Complete with accessories
For a safe and efficient installation, this fan is supplied with a wide range of accessories. Protective grilles, dampers, flexible connections, and vibration dampers ensure a stable setup. In addition, condensate drains, silencers, safety switches, acoustic enclosures, and frequency inverters are available to perfectly tailor the fan to your application.
