Description

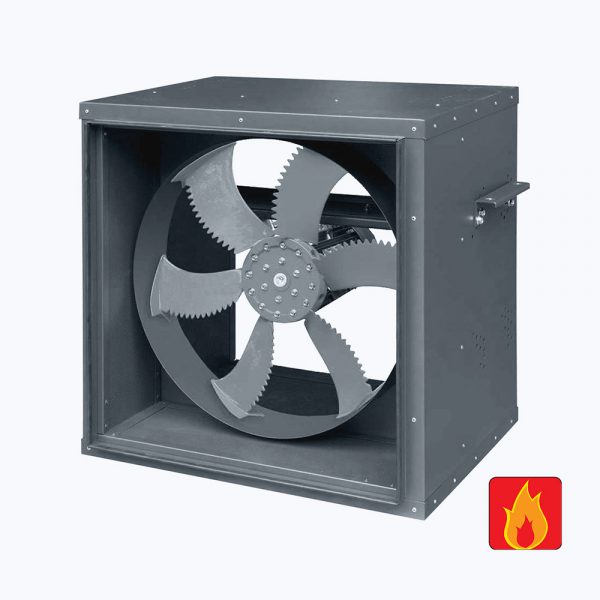

Axial smoke and heat exhaust box fan
The VN-Box Winder HT is designed for reliable smoke and heat extraction in case of fire, while also providing continuous ventilation under demanding conditions. With its high airflow capacity and robust construction, this fan is ideally suited for car parks, industrial halls, and other large-scale environments where fire safety is critical.
Equipped with a Smoke Extraction motor (IP55), the unit can be controlled via frequency inverter. Depending on the model, it is certified for operation at high temperatures of 200°C, 300°C, or even 400°C for 120 minutes, fully compliant with the applicable standards.
Available in a wide range of diameters, the VN-Box Winder HT can be combined with matching accessories to ensure efficient installation and reliable performance.
Key specifications:
- Dimensions: 560 to 1,250 mm
- Capacity: up to 140,000 m³/h
- Pressure: up to 1,300 Pa
- Motor: Smoke Extraction motor, IP55
- Control: Frequency inverter
- Extra: Certified for 200°C, 300°C, or 400°C – 120 minutes
- Accessories available. Sound-insulated construction.
Applications:
- Car parks and underground garages
- Industrial halls and warehouses
- Large public or commercial buildings
- Continuous ventilation with certified fire safety
Benefits:
- Reliable smoke and heat extraction up to 400°C/120 min
- High airflow performance for large spaces
- Robust, sound-insulated construction
- Frequency-controlled operation for flexibility
- Wide range of sizes and accessories available
Looking for a reliable smoke and heat exhaust solution? Contact us for expert advice or a tailored quote for the VN-Box Winder HT.
