Description

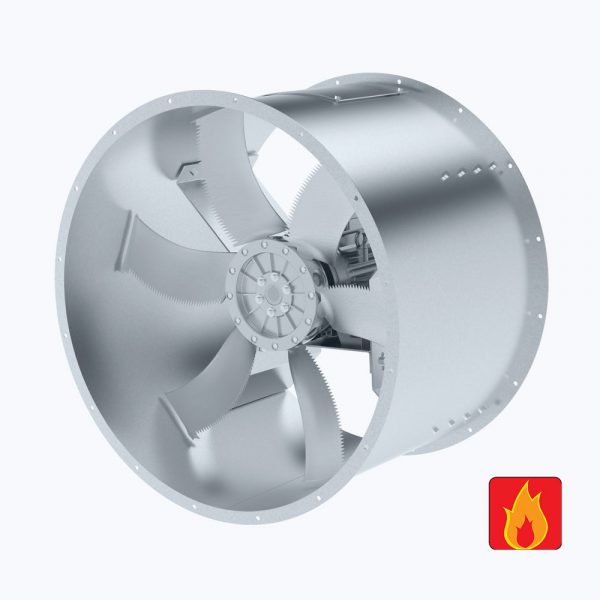

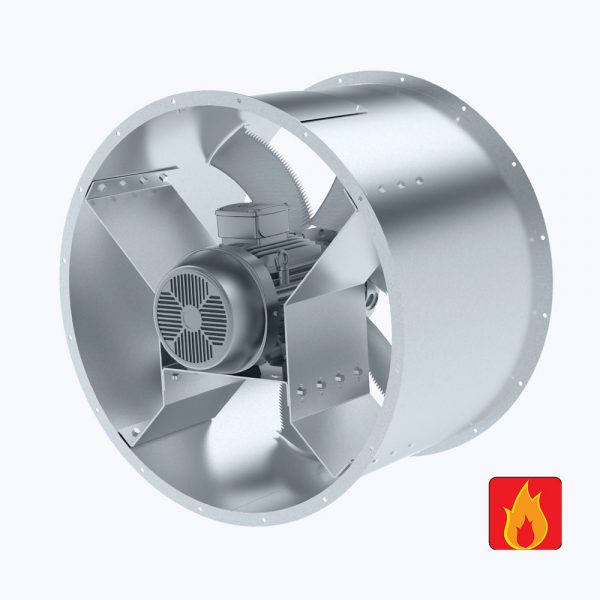

Axial duct fan with Smoke Extraction motor – powerful, heat resistant and versatile
This robust axial fan is designed for high air volumes and smoke and heat exhaust applications. With its Smoke Extraction motor and temperature resistance up to 400°C for 120 minutes, this fan is ideal for situations where safety, performance and reliability are key.
Technical specifications:
- Sizes: 300 to 1,600 mm
- Airflow: up to 190,000 m³/h
- Pressure: up to 1,450 Pa
- Motor: Smoke Extraction motor (IP55 protection class)
- Control: suitable for frequency inverter regulation
Applications and features:
- Heat resistant: suitable for operating at 200°C, 300°C or 400°C for 120 minutes (EN 12101-3 compliant)
- Flexible installation: suitable for duct or shaft mounting, horizontal or vertical installation, wall mounting
- Accessories: available with a wide range of fixings, silencers, grilles and control components
This axial duct fan is highly suitable for smoke extraction, pressurisation systems and other industrial ventilation applications where high temperatures or ATEX environments are involved. The combination of high capacity, durable construction and fire safety makes this fan a reliable choice for car parks, industrial halls, tunnels, logistics facilities, public buildings, hospitals, care homes and atriums.
Looking for the right version for your project? Contact us for technical advice or a tailored quotation.
