Description

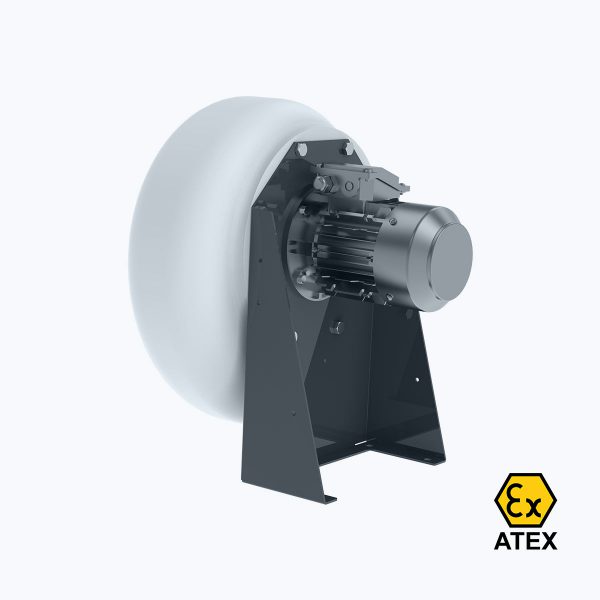

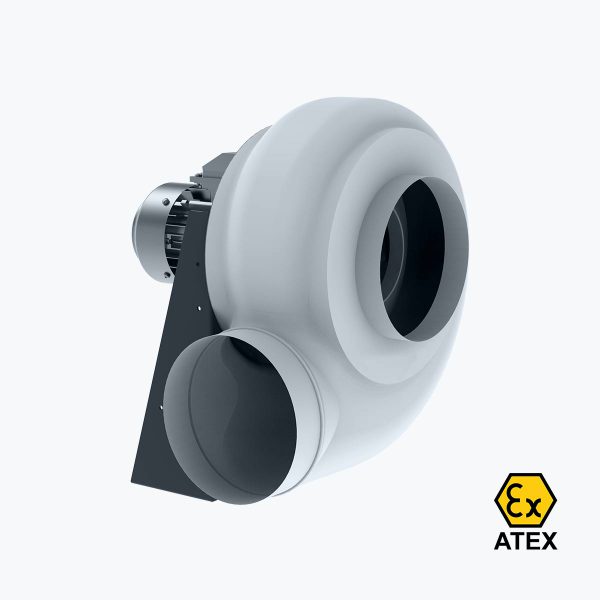

ATEX plastic centrifugal fan with backward-curved blades
This ATEX plastic centrifugal fan is specifically designed for explosive atmospheres where corrosive airflow is also present. With the combination of an ATEX-certified IP55 motor and a housing made of antistatic plastic, the fan is perfectly suited for applications in the chemical industry, offshore environments, and battery production.
The fan is certified according to ATEX 114 (2014/34/EU) and can be used safely in Zone 1 and Zone 2 hazardous areas. With an airflow capacity of up to 140,000 m³/h and a pressure range of up to 6,000 Pa, it ensures reliable performance and safe operation in explosive atmospheres.
Key specifications
- Sizes: 200 to 1,400 mm
- Capacity: up to 140,000 m³/h
- Pressure: up to 6,000 Pa
- Motor: ATEX IP55 motor
- Control: Frequency control
- Certification: ATEX 114 (2014/34/EU)
- Accessories: protective grilles, dampers, flexible connections, vibration isolators, condensate drain, silencers, isolator switches, acoustic enclosures, frequency inverters
Complete with accessories
For a safe and efficient installation, we supply a wide range of accessories. Protective grilles, dampers, flexible connections, and vibration isolators ensure stable and secure mounting. Additional options include condensate drains, silencers, isolator switches, acoustic enclosures, and frequency inverters — enabling the fan to be fully optimized for your application.
