Description

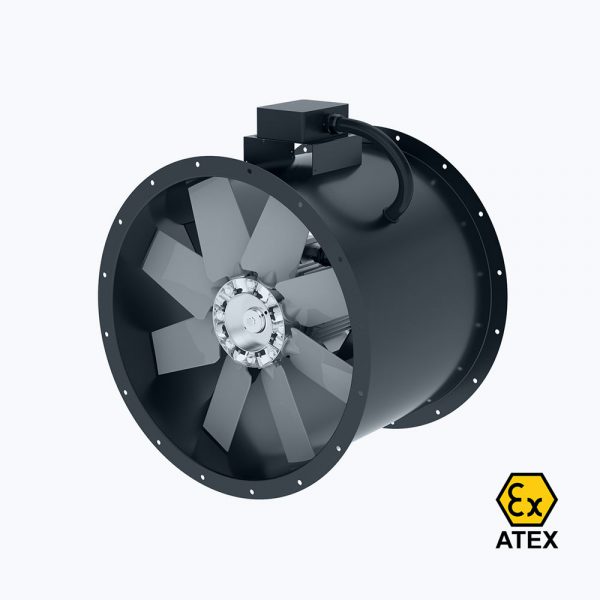

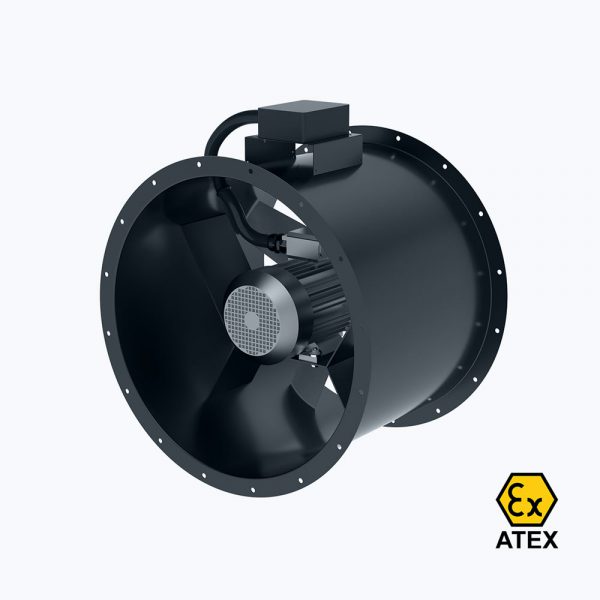

ATEX axial duct fan
Do you need a powerful duct fan for use in explosive atmospheres? Our ATEX axial duct fan is specifically designed for applications in zone 1 or 2, ensuring both high performance and reliability. A safe and robust solution for industrial ventilation in ATEX zones.
Key specifications
- Sizes: 310 to 1,600 mm
- Airflow: up to 200,000 m³/h
- Pressure rise: up to 1,600 Pa
- Motor: ATEX-certified motor
- Control: Frequency control available on request
- Versions: Stainless steel or galvanized finish
- Accessories: Wide range available
Safe ventilation in ATEX zones
This duct fan is available in multiple ATEX-certified versions for gas or dust environments. That makes it suitable for industries such as chemical plants, storage facilities, refineries and other installations where explosive atmospheres may occur.
High performance and flexible use
With an airflow capacity of up to 200,000 m³/h and pressure rise up to 1,600 Pa, this fan is suitable for both supply and exhaust in large-scale installations. Frequency control (on request) allows precise adjustment of airflow to the required capacity.
Also suitable for smoke extraction (RWA)
The fan is optionally available according to smoke and heat exhaust standards (RWA), class F200, F300 or F400. This makes it a reliable choice for fire safety installations in car parks and industrial buildings.
Complete configuration available
The fan can be combined with a wide range of accessories such as mounting flanges, protective grilles, vibration dampers and control equipment. We’ll be glad to advise you on the right configuration for your specific application.
